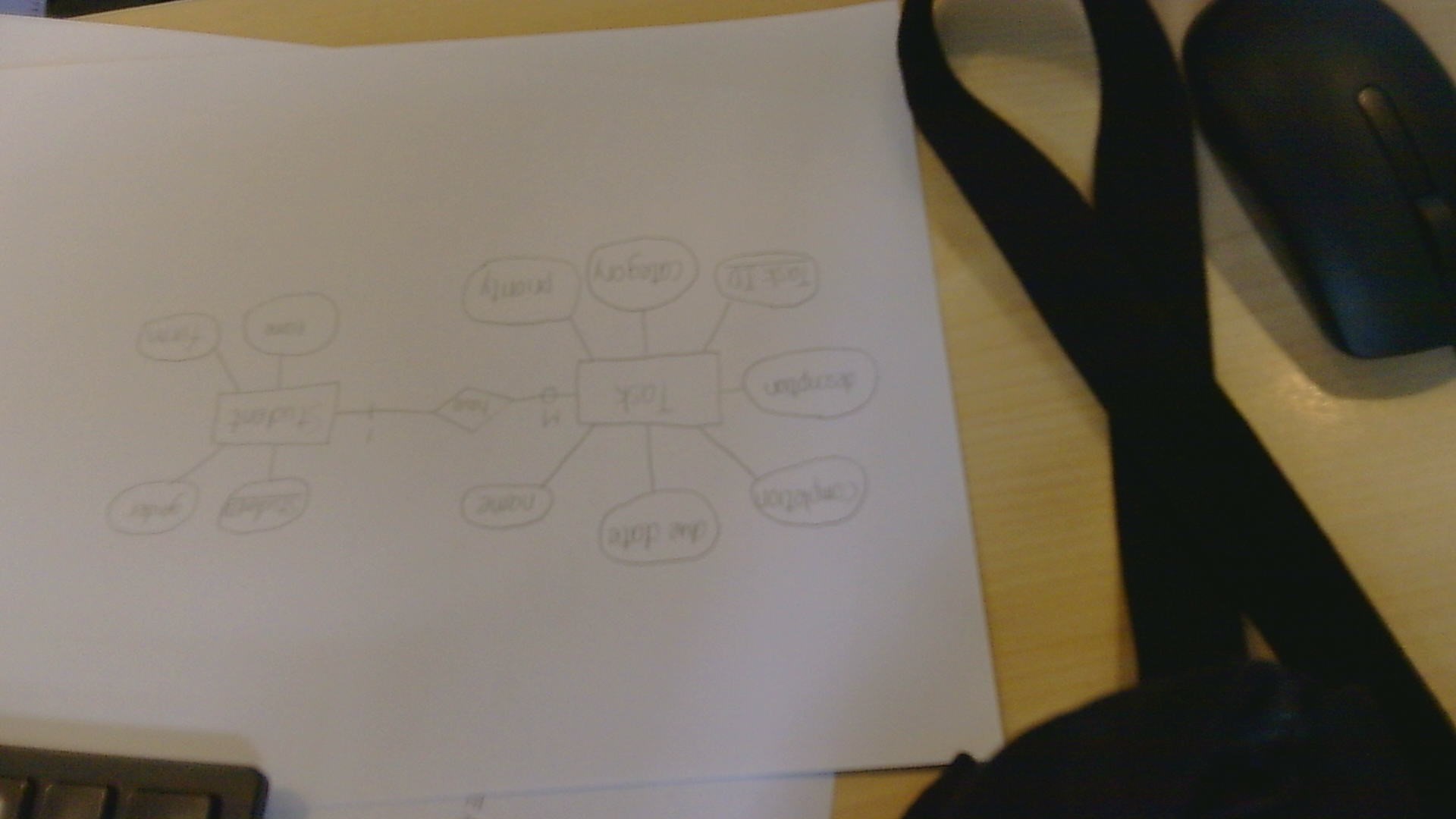

It looks like you’ve sketched out an Entity-Relationship Diagram (ERD) for a student task management system. This is a great starting point for designing a database!

Based on your drawing, here is a breakdown of the components you’ve identified and how they translate into a structured data model.

1. Entities and Attributes

You have two main entities (the rectangles) with several attributes (the ovals):

Student

Student ID: Likely your Primary Key (PK) to uniquely identify each student.
Name: The student’s full name.
Form: Their grade level or class group.
Gender: Demographic information.

Task

Task ID: The Primary Key for identifying specific tasks.
Name: The title of the task.
Description: More detail on what needs to be done.
Category: (e.g., Homework, Project, Revision).
Priority: (e.g., High, Medium, Low).
Due Date: When it needs to be finished.
Completion: A status indicator (e.g., Pending, In Progress, Done).

2. Relationships

You’ve drawn a diamond labeled “has” connecting the two.

Cardinality: Your notation indicates a 1-to-Many (1:N) relationship.
Meaning: One Student can have many Tasks, but each specific Task belongs to only one Student.

3. Implementation Suggestions

When you move this into an actual database (like SQL), here are a few tips to make it more robust:

Foreign Keys: To link these in a table, the Task table will need a Student_ID column. This “points” back to the student who owns that task.
Data Types: * due_date should be a DATE or DATETIME type.
- completion could be a BOOLEAN (true/false) or a VARCHAR for status strings.
- priority could be an integer (1-5) or an ENUM.

Suggested SQL Schema (Logical Design)

If you were to write this as code, it would look something like this:

SQL

CREATE TABLE Student (
    student_id INT PRIMARY KEY,
    name VARCHAR(100),
    form VARCHAR(50),
    gender VARCHAR(10)
);

CREATE TABLE Task (
    task_id INT PRIMARY KEY,
    student_id INT, -- This connects to the Student table
    name VARCHAR(100),
    description TEXT,
    category VARCHAR(50),
    priority VARCHAR(20),
    due_date DATE,
    completion_status VARCHAR(20),
    FOREIGN KEY (student_id) REFERENCES Student(student_id)
);

Does this capture everything you intended for your project, or would you like to add a “Subject” or “Teacher” entity as well?https://szto.hkjc.uk
